Introduction

Architecture decisions made early in a project have a compounding effect on every engineering hour that follows. Choose a pattern that fits your problem, and the codebase stays navigable as it grows. Choose poorly, and you spend a disproportionate amount of your time fighting the architecture rather than building features.

Presentation patterns - MVC, MVVM, MVP, Flux, and their variants - are opinionated answers to a universal challenge: how do you organize the code responsible for user interface logic, application state, and data access in a way that remains maintainable, testable, and scalable? Each pattern represents a different set of trade-offs, shaped by the contexts in which it emerged: server-rendered Java web apps, desktop GUI frameworks, native mobile development, and eventually, the JavaScript-heavy single-page application.

This guide is intended for professional developers who already know what MVC stands for and want to go deeper - into the reasoning behind each pattern, the concrete scenarios where each excels or struggles, and the practical engineering decisions involved in implementing them well. We will cover the major patterns, compare them with working TypeScript examples, and close with actionable best practices drawn from real-world engineering contexts.

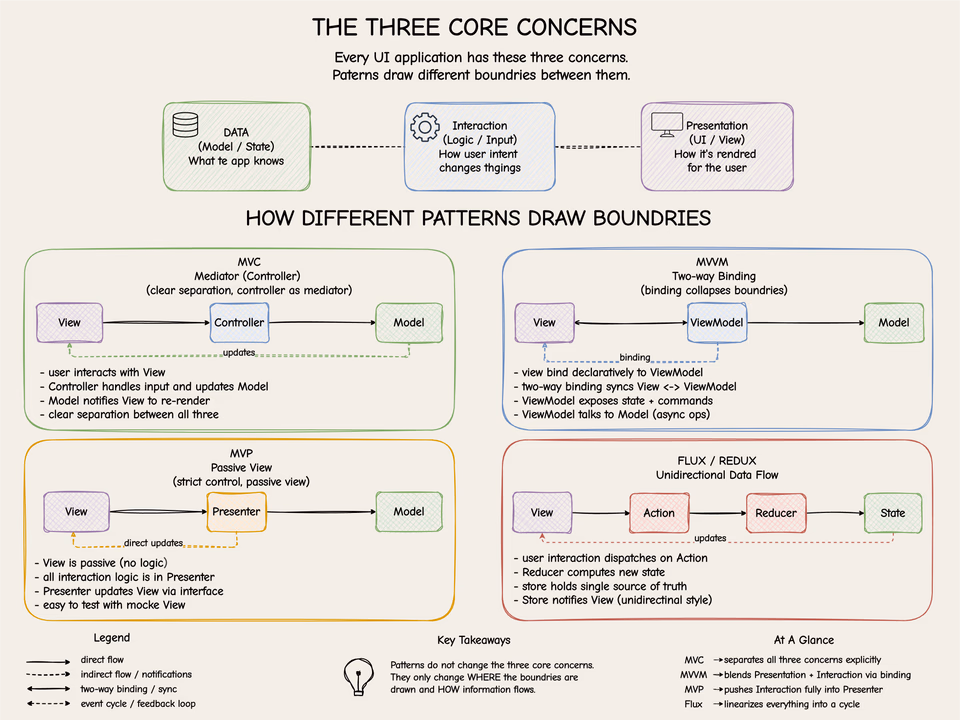

Why Presentation Patterns Exist: The Core Problem They Solve

Before evaluating patterns, it is worth being precise about the problem they solve. The fundamental tension in any UI application is between three concerns that are logically distinct but operationally coupled: data (what the application knows), presentation (how that data is rendered for the user), and interaction (how user intent changes data and presentation).

In the absence of any pattern, these concerns collapse into each other. Business logic leaks into event handlers. DOM manipulation is interleaved with network calls. State is scattered across closures and global variables. The result is code that is difficult to reason about, nearly impossible to test in isolation, and fragile in the face of change.

Presentation patterns solve this by establishing explicit boundaries. Each pattern draws those boundaries differently, with different implications for how tightly components are coupled, how data flows through the system, and how much indirection is introduced. Understanding those trade-offs - not just the names and acronyms - is what enables you to make deliberate, defensible architectural choices.

MVC: Model-View-Controller

Origins and Core Concept

MVC was first described by Trygve Reenskaug at Xerox PARC in 1979, originally for Smalltalk-80 applications. Its longevity is a testament to the clarity of its central idea: separate the representation of data (Model), its visual rendering (View), and the logic that mediates user input (Controller). Despite being over four decades old, MVC remains the default architectural pattern for server-rendered web frameworks such as Ruby on Rails, Laravel, Django, and ASP.NET MVC.

In the context of JavaScript and client-side applications, MVC takes on a somewhat different character. The strict separation that works cleanly on the server - where each request maps to a discrete controller action - becomes more nuanced in a long-lived, stateful browser environment. Nevertheless, the conceptual model remains useful, particularly when building applications where user interactions are discrete and well-defined.

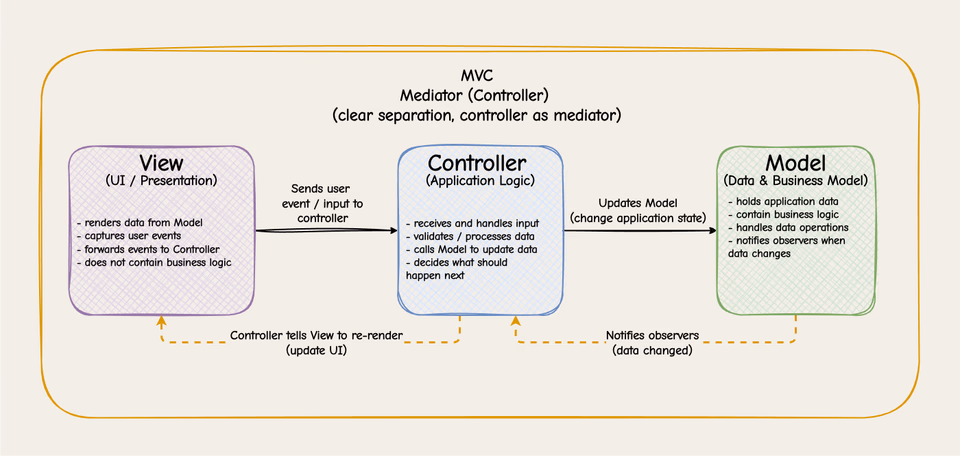

Structure and Data Flow

In MVC, the flow is broadly unidirectional. The user interacts with the View, which notifies the Controller. The Controller processes the input, potentially updating the Model. The Model notifies the View (often via an observer or event system) to re-render. In server-side MVC, the Controller typically directly renders the View.

// model.ts - Pure data and business rules
class UserModel {
  private _name: string;
  private _email: string;
  private _listeners: Array<() => void> = [];

  constructor(name: string, email: string) {
    this._name = name;
    this._email = email;
  }

  get name(): string {
    return this._name;
  }
  get email(): string {
    return this._email;
  }

  updateName(name: string): void {
    this._name = name;
    this._notify();
  }

  onChange(listener: () => void): void {
    this._listeners.push(listener);
  }

  private _notify(): void {
    this._listeners.forEach((fn) => fn());
  }
}

// view.ts - Responsible only for rendering
class UserView {
  private container: HTMLElement;

  constructor(container: HTMLElement) {
    this.container = container;
  }

  render(name: string, email: string): void {
    this.container.innerHTML = `
      <div class="user-card">
        <p><strong>Name:</strong> ${name}</p>
        <p><strong>Email:</strong> ${email}</p>
        <button id="edit-btn">Edit Name</button>
      </div>
    `;
  }

  onEditClick(handler: () => void): void {
    const btn = this.container.querySelector("#edit-btn");
    btn?.addEventListener("click", handler);
  }
}

// controller.ts - Mediates between Model and View
class UserController {
  constructor(
    private model: UserModel,
    private view: UserView,
  ) {
    this.model.onChange(() => this.refreshView());
    this.view.onEditClick(() => this.handleEdit());
    this.refreshView();
  }

  private refreshView(): void {
    this.view.render(this.model.name, this.model.email);
  }

  private handleEdit(): void {
    const newName = prompt("Enter new name:", this.model.name);
    if (newName) this.model.updateName(newName);
  }
}

Where MVC Works Well

MVC is well-suited for applications with a clear command-response interaction model: the user does something, the system responds, and the view updates. Server-rendered applications, content management systems, admin dashboards, and CRUD-heavy applications all benefit from MVC's simplicity. The pattern is broadly understood, and most developers can orient themselves quickly in an MVC codebase without deep onboarding.

The principal limitation in client-side MVC is that as UI complexity grows, Controllers tend to accumulate logic. What starts as a clean mediator becomes a catch-all for business logic, validation, UI state management, and data fetching. This is the so-called "Massive Controller" problem, and it is often the trigger for teams to migrate toward MVVM or a flux-based approach.

MVVM: Model-View-ViewModel

The Evolution Toward Data Binding

MVVM was introduced by John Gossman at Microsoft in 2005, specifically for the WPF (Windows Presentation Foundation) framework, and later popularized in the JavaScript world through frameworks like Knockout.js, Angular, and Vue.js. It builds on MVC by replacing the Controller with a ViewModel - a presentation-layer abstraction that exposes observable data properties and commands to which the View can bind declaratively.

The key innovation is two-way data binding: when the ViewModel's state changes, the View updates automatically, and when the user modifies the View (e.g., typing into an input), the ViewModel's state updates accordingly, without explicit DOM manipulation code. This removes a significant category of boilerplate and reduces the surface area for bugs related to View/Model synchronization.

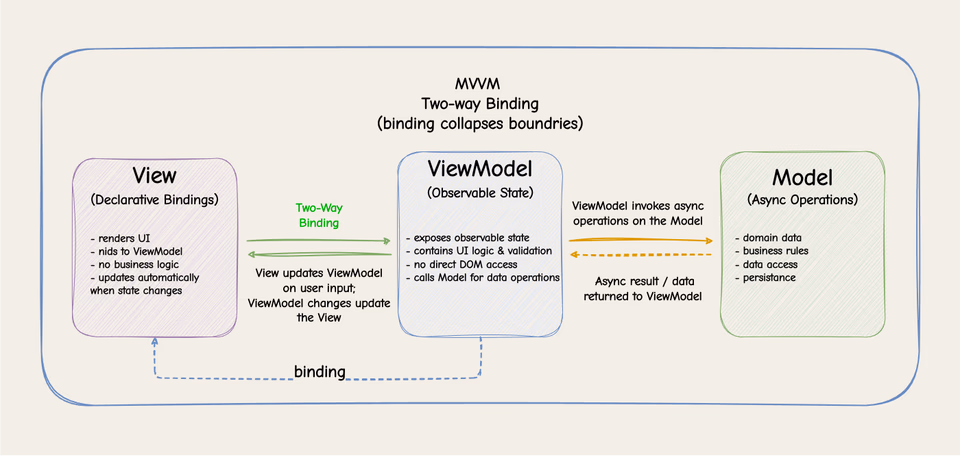

Structure and Data Flow

// model.ts - Domain data and persistence logic
interface UserData {
  name: string;
  email: string;
}

class UserRepository {
  async fetchUser(id: string): Promise<UserData> {
    const response = await fetch(`/api/users/${id}`);
    return response.json();
  }

  async saveUser(id: string, data: Partial<UserData>): Promise<void> {
    await fetch(`/api/users/${id}`, {
      method: "PATCH",
      headers: { "Content-Type": "application/json" },
      body: JSON.stringify(data),
    });
  }
}

// viewmodel.ts - Observable state and commands for the View
import { ref, computed } from "vue"; // Vue 3 Composition API as ViewModel layer

function useUserViewModel(repository: UserRepository, userId: string) {
  const name = ref("");
  const email = ref("");
  const isLoading = ref(false);
  const isSaving = ref(false);

  const displaySummary = computed(() => `${name.value} <${email.value}>`);

  async function load(): Promise<void> {
    isLoading.value = true;
    const user = await repository.fetchUser(userId);
    name.value = user.name;
    email.value = user.email;
    isLoading.value = false;
  }

  async function save(): Promise<void> {
    isSaving.value = true;
    await repository.saveUser(userId, { name: name.value, email: email.value });
    isSaving.value = false;
  }

  return { name, email, displaySummary, isLoading, isSaving, load, save };
}

<!-- view - Vue SFC template; binds directly to the ViewModel -->
<template>
  <div v-if="isLoading">Loading...</div>
  <div v-else>
    <p>{{ displaySummary }}</p>
    <input v-model="name" placeholder="Name" />
    <input v-model="email" placeholder="Email" />
    <button @click="save" :disabled="isSaving">
      {{ isSaving ? 'Saving…' : 'Save' }}
    </button>
  </div>
</template>

Where MVVM Excels

MVVM is the natural fit for applications with rich, data-driven interfaces where the state of the UI closely mirrors the state of the underlying data. Real-time dashboards, collaborative editing tools, form-heavy enterprise applications, and any SPA with complex UI state are all strong candidates. The declarative binding model reduces the amount of imperative DOM code and makes it easier for designers and developers to collaborate using templates.

The ViewModel, by virtue of having no direct dependency on the DOM, is also straightforward to unit test. You instantiate the ViewModel, call its methods, and assert on its properties - no browser environment required. This is a significant practical advantage over MVC's Controller, which often carries implicit dependencies on the View.

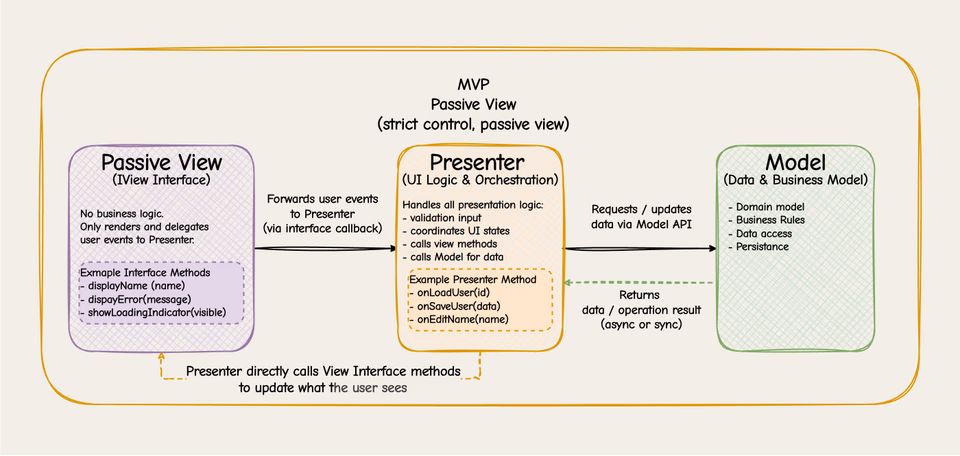

MVP: Model-View-Presenter

A Testability-First Variant

MVP (Model-View-Presenter) is a close relative of MVC that emerged from the Taligent project in the early 1990s and gained wide adoption in Java Swing and Android development. The critical distinction from MVC is that in MVP, the View is completely passive - it contains no logic, only the ability to render and delegate user input to the Presenter. The Presenter handles all UI logic and directly updates the View through an explicit interface.

This design is not about two-way data binding. Instead, it enforces a strict contract between the Presenter and the View via an interface. This makes the View entirely substitutable - in tests, you replace it with a mock, allowing the Presenter's logic to be tested without any rendering infrastructure.

// Explicit contract between Presenter and View
interface IUserView {
  displayName(name: string): void;
  displayError(message: string): void;
  showLoadingIndicator(visible: boolean): void;
}

class UserPresenter {
  constructor(
    private view: IUserView,
    private repository: UserRepository,
  ) {}

  async loadUser(id: string): Promise<void> {
    this.view.showLoadingIndicator(true);
    try {
      const user = await this.repository.fetchUser(id);
      this.view.displayName(user.name);
    } catch {
      this.view.displayError("Failed to load user. Please try again.");
    } finally {
      this.view.showLoadingIndicator(false);
    }
  }
}

// In tests - no DOM, no framework, no network
class MockUserView implements IUserView {
  displayedName = "";
  displayedError = "";
  loadingVisible = false;

  displayName(name: string) {
    this.displayedName = name;
  }
  displayError(message: string) {
    this.displayedError = message;
  }
  showLoadingIndicator(visible: boolean) {
    this.loadingVisible = visible;
  }
}

// Test
const mockView = new MockUserView();
const presenter = new UserPresenter(mockView, new UserRepository());
await presenter.loadUser("123");
console.assert(mockView.displayedName !== "");

When to Choose MVP

MVP is the preferred choice when testability of UI logic is a first-order concern - for example, in enterprise applications with complex business rules embedded in the presentation layer, or in environments where automated UI testing is difficult (as was the case with early Android). The explicit interface between Presenter and View also serves as living documentation of exactly what the View can and cannot do, which is valuable in large teams.

The cost of MVP is verbosity. Every View must implement an interface, every interaction must be routed through the Presenter, and the boilerplate can feel disproportionate for simple UI components. In a modern TypeScript SPA, frameworks like Angular partially absorb this cost through its component architecture, but the pattern remains valuable for isolating complex orchestration logic.

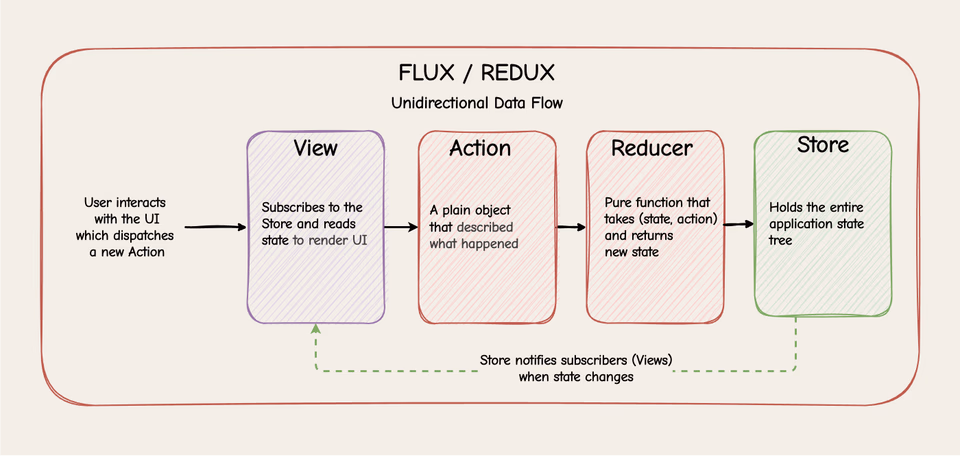

Flux and Redux: Unidirectional Data Flow at Scale

Why Flux Was Necessary

Facebook introduced the Flux architecture in 2014 to solve a specific, well-documented problem: in large React applications, bidirectional data flow between components and shared state led to cascading, unpredictable updates that were difficult to debug. The Flux pattern imposed a strict unidirectional data flow - Actions are dispatched to a Dispatcher, which updates Stores, which notify Views, which may dispatch further Actions - making state changes traceable and reproducible.

Redux, introduced by Dan Abramov and Andrew Clark in 2015, refined Flux into a minimal and elegant formulation: a single immutable state tree, pure reducer functions for state transitions, and a uni-directional dispatch cycle. Redux's design makes every state change an explicit, serializable event, enabling powerful developer tooling such as time-travel debugging and state persistence.

// Redux Toolkit - modern Redux with reduced boilerplate
import { createSlice, PayloadAction, configureStore } from "@reduxjs/toolkit";

interface UserState {
  name: string;
  email: string;
  status: "idle" | "loading" | "error";
}

const userSlice = createSlice({
  name: "user",
  initialState: { name: "", email: "", status: "idle" } as UserState,
  reducers: {
    setUser(state, action: PayloadAction<{ name: string; email: string }>) {
      state.name = action.payload.name;
      state.email = action.payload.email;
      state.status = "idle";
    },
    setLoading(state) {
      state.status = "loading";
    },
    setError(state) {
      state.status = "error";
    },
  },
});

export const { setUser, setLoading, setError } = userSlice.actions;

export const store = configureStore({
  reducer: { user: userSlice.reducer },
});

export type RootState = ReturnType<typeof store.getState>;
export type AppDispatch = typeof store.dispatch;

Trade-offs of the Flux Model

Redux's strict unidirectionality makes state changes easy to audit and debug. It excels in applications with complex, shared state - multi-step workflows, real-time data, collaborative features. The explicit action log also integrates well with analytics and error reporting.

The criticism most frequently levied at Redux is its ceremony: even simple state updates require defining an action type, an action creator, and a reducer case. Redux Toolkit (the officially recommended approach as of Redux 4.x) substantially reduces this overhead through createSlice and createAsyncThunk, but the mental model of thinking in terms of dispatched actions remains a barrier for developers accustomed to mutable, object-oriented state management. For applications where state is largely local to individual components, React's built-in useState and useReducer hooks, or a lighter solution like Zustand, are often more appropriate than a full Redux store.

A Pattern Comparison: Choosing the Right Tool

No presentation pattern is universally superior. Each is an answer to a specific set of constraints. The table below summarizes the primary characteristics of each pattern along the axes most relevant to architectural decisions.

The practical decision framework is straightforward. Start with the simplest pattern that does not actively constrain your requirements. For a content site or CRUD admin tool, MVC or even framework conventions without an explicit pattern are often sufficient. For a SPA with moderate state complexity, MVVM-style component models (Vue Composition API, Angular services) fit naturally. For applications with complex shared state and strict audit requirements, a Flux-based architecture provides the necessary control. If testability of UI logic is the dominant constraint - in regulated industries, for example - MVP's explicit View interfaces give you the most leverage.

Performance Considerations

Rendering Efficiency and Reactivity Models

The reactivity model underlying your chosen pattern has a direct impact on rendering performance. MVVM frameworks use different strategies to detect state changes and schedule re-renders: Vue 3 uses a Proxy-based fine-grained reactivity system that tracks dependencies at the property level; React (with or without Redux) uses a virtual DOM diffing algorithm and relies on referential equality to bail out of expensive subtree re-renders; Angular uses Zone.js-based change detection with optional OnPush optimization.

Understanding the reactivity model is not optional for performance-conscious development. In Vue, accidentally breaking reactivity by replacing an entire object rather than mutating tracked properties can cause missed updates. In React/Redux, storing complex nested objects in the Redux store without normalization can cause excessive re-renders, because a selector returning a new object reference on every call will cause connected components to re-render even when the data is semantically unchanged. Using memoized selectors (via reselect) is the standard mitigation.

// Inefficient Redux selector - creates a new array reference every call
const selectActiveUsers = (state: RootState) =>
  state.users.filter((u) => u.active); // new array on every call -> unnecessary re-renders

// Efficient - memoized with reselect
import { createSelector } from "@reduxjs/toolkit";

const selectUsers = (state: RootState) => state.users;
const selectActiveUsers = createSelector(
  selectUsers,
  (users) => users.filter((u) => u.active), // recomputed only when state.users changes
);

Bundle Size and Code Splitting

Pattern choice has downstream effects on bundle size. Flux/Redux involves additional dependencies and infrastructure code. MVVM frameworks like Angular carry a substantial runtime, offset by their integrated toolchain optimizations. The pattern itself rarely dominates bundle size; the framework and third-party libraries do. Regardless of pattern, applying route-based code splitting via dynamic import() is the highest-leverage optimization for initial load time in any SPA.

Testability in Practice

Isolating Logic from the DOM

The testability of presentation logic is primarily determined by how thoroughly it is separated from the rendering environment. Code that directly manipulates the DOM, reads layout properties, or relies on browser APIs is inherently harder to test - it requires a browser or a DOM emulator like jsdom. The patterns that decouple presentation logic from the DOM most aggressively (MVP's Presenter, MVVM's ViewModel, Redux's reducers) are the easiest to test with fast, lightweight unit tests.

Redux reducers are pure functions of (state, action) => newState. They are trivial to test exhaustively without any framework setup. MVVM ViewModels, when written without direct DOM references, can be tested by instantiating the ViewModel, triggering methods, and asserting on observable properties. MVP Presenters, operating against a mock View interface, enable comprehensive testing of UI flows - including error states, loading states, and edge cases - without rendering anything.

// Testing a Redux reducer - no framework, no DOM, no async
import { userSlice, setUser } from "./userSlice";

describe("userSlice reducer", () => {
  it("updates name and email when setUser is dispatched", () => {
    const initialState = { name: "", email: "", status: "idle" as const };
    const action = setUser({ name: "Alice", email: "alice@example.com" });
    const nextState = userSlice.reducer(initialState, action);

    expect(nextState.name).toBe("Alice");
    expect(nextState.email).toBe("alice@example.com");
    expect(nextState.status).toBe("idle");
  });
});

Integration and End-to-End Testing

Unit tests of isolated presentation logic are necessary but not sufficient. Integration tests - which exercise the full component tree with a real (or simulated) data layer - catch problems that unit tests miss, such as incorrect prop threading, missing event wiring, or state synchronization bugs in MVVM bindings. Tools like React Testing Library and Vue Test Utils are designed to test components as users interact with them, rather than testing implementation details.

End-to-end tests with tools like Playwright or Cypress provide confidence that the full application stack - routing, data fetching, rendering, and user interaction - works correctly together. These tests are slower and more brittle than unit tests, so they should cover critical user journeys rather than exhaustive edge cases. The right balance is roughly analogous to the well-known testing pyramid: many unit tests, a moderate number of integration tests, a small number of E2E tests covering key flows.

Best Practices for Implementing Presentation Patterns

Keep the Model Ignorant of the Presentation Layer

The most consistently violated rule in presentation pattern implementations is allowing the Model to know about the View or ViewModel. The Model should be a pure representation of domain concepts, business rules, and data access. It must never import, reference, or depend on UI framework types, DOM elements, or rendering concerns. This constraint is what makes the Model reusable across different rendering contexts (a React app and a Node CLI consuming the same domain logic, for example) and easy to test without a frontend environment.

Enforcing this boundary in TypeScript is straightforward: organize your code into clearly separated layers (e.g., domain/, application/, infrastructure/, ui/), and use linting rules or module boundary enforcement tools (such as eslint-plugin-boundaries or Nx module boundary rules) to make cross-layer violations fail the build.

Normalize State for Complex Data Graphs

In Flux/Redux architectures, storing nested relational data as deeply nested objects creates performance and consistency problems. When a user entity appears in three different arrays in the Redux store, updating that user's name requires finding and updating all three locations - an error-prone process. Normalizing state (storing entities in a flat map keyed by ID, with other slices storing only IDs) avoids this problem and aligns with the patterns promoted by Redux Toolkit's createEntityAdapter.

import { createEntityAdapter, createSlice } from "@reduxjs/toolkit";

interface User {
  id: string;
  name: string;
  email: string;
}

const usersAdapter = createEntityAdapter<User>();

const usersSlice = createSlice({
  name: "users",
  initialState: usersAdapter.getInitialState(),
  reducers: {
    userAdded: usersAdapter.addOne,
    userUpdated: usersAdapter.updateOne,
    userRemoved: usersAdapter.removeOne,
  },
});

Treat ViewModels as View-Specific, Not Domain Objects

A common mistake in MVVM implementations is reusing domain model objects directly as ViewModels. Domain objects carry business semantics and validation rules that may not correspond to View requirements. A checkout form may need a formattedTotal property that doesn't belong in a financial domain object. A user profile view may combine data from multiple domain objects into a single, flat structure for easy binding. ViewModels should be explicitly constructed to serve the View, even if this involves some duplication of field names. The mapping cost is worth the architectural clarity.

Version and Document Your State Shape

As applications evolve, the shape of the application state - whether in a Redux store, a ViewModel, or a context provider - changes. Without discipline, these changes become breaking migrations that are difficult to trace. Treating your state shape as a versioned API, documenting it explicitly, and writing migration utilities for persisted state (via redux-persist migration functions, for example) prevents data corruption when users return to an updated application with stale persisted state.

Key Takeaways

1. Match the pattern to the problem. MVC for CRUD and server-rendered apps; MVVM for rich, data-driven SPAs; MVP when presentation logic testability is paramount; Flux/Redux for complex, shared, auditable state.
2. Keep the Model pure. Domain logic must not depend on UI frameworks, DOM APIs, or rendering concepts - ever.
3. Normalize complex state. In Flux architectures, flat, ID-keyed entity maps prevent consistency bugs and improve selector performance.
4. Use the reactivity model intentionally. Understand how your MVVM framework detects changes and schedules re-renders; most performance regressions in data-bound UIs stem from violating the framework's reactivity contract.
5. Design for testability from the start. Pure ViewModels, Presenters against interfaces, and pure reducer functions give you fast, framework-independent unit tests; treat these as first-class engineering outputs.

Analogies and Mental Models

MVC as a restaurant kitchen: The Controller is the waiter - it takes the customer's (user's) order and communicates it to the kitchen (Model). The kitchen prepares the dish and the waiter brings it back to the customer (View). The kitchen knows nothing about the dining room; the customer knows nothing about the kitchen.

MVVM as a spreadsheet: The ViewModel is the cell formula layer. You enter data into a cell (the View); the formula recalculates (the ViewModel reacts); the dependent cells update automatically. No code explicitly orchestrates the propagation - the binding system handles it declaratively.

Redux as a git commit history: Every state change is a discrete, named commit (an Action). The current state is the result of replaying all commits (reducing all actions) from the initial state. You can inspect every transition, travel backward in time, and reproduce any historical state exactly.

80/20 Insight

If you retain only a small set of ideas from this guide, let them be these:

The vast majority of bugs in presentation-layer code arise from one of two sources: implicit coupling between state and UI (fixing one breaks the other unexpectedly) and unclear ownership of state (multiple components mutate the same data independently). Any pattern that forces you to make these relationships explicit - whether through a ViewModel's observable properties, a Presenter's view interface, or Redux's action log - eliminates most of that bug surface automatically.

The pattern you choose matters less than how consistently and deliberately you apply it. A disciplined MVC implementation outperforms a sloppy MVVM one on every practical metric.

Conclusion

The landscape of presentation patterns in JavaScript is broader and richer than the MVC vs. MVVM dichotomy that dominates most introductory discussions. Each pattern - from MVP's testability-first design to Redux's auditable unidirectional flow - exists because real engineering teams encountered real constraints that prior patterns handled poorly.

Effective architectural decision-making requires understanding these constraints and the trade-offs each pattern makes in addressing them. It requires recognizing that patterns are not ends in themselves but tools for organizing complexity, and that the best pattern for your project is the one that makes your team's specific challenges easier, not the one that is most popular at a given moment.

As JavaScript frameworks continue to evolve - toward signals-based fine-grained reactivity (SolidJS, Vue 3 Signals), server-component models (React Server Components), and hybrid rendering strategies - the surface of presentation patterns will continue to expand. The underlying tensions they address, however, remain constant. Mastering the principles behind the patterns - separation of concerns, explicit state ownership, testable boundaries - will serve you regardless of which framework or pattern convention dominates the next cycle.

References

1. Reenskaug, T. (1979). MVC: Model-View-Controller. Original Smalltalk-80 report. University of Oslo. https://folk.universitetetioslo.no/trygver/themes/mvc/mvc-index.html
2. Gossman, J. (2005). Introduction to Model/View/ViewModel pattern for building WPF apps. Microsoft MSDN Blog.
3. Facebook Engineering. (2014). Flux: Application Architecture for Building User Interfaces. https://facebookarchive.github.io/flux/
4. Abramov, D., & Clark, A. (2015). Redux: A Predictable State Container for JavaScript Applications. https://redux.js.org
5. Redux Toolkit Documentation. (2024). Redux Toolkit - Official Documentation. https://redux-toolkit.js.org
6. Vue.js Core Team. (2023). Vue 3 Composition API RFC and Documentation. https://vuejs.org/guide/extras/composition-api-faq
7. Angular Team. (2024). Angular Architecture Guide. https://angular.dev/guide/architecture
8. Fowler, M. (2002). Patterns of Enterprise Application Architecture. Addison-Wesley. (Chapter: Presentation Patterns - MVC, MVP, MVVM)
9. Fowler, M. (2006). GUI Architectures. martinfowler.com. https://martinfowler.com/eaaDev/uiArchs.html
10. Osmani, A. (2017). Learning JavaScript Design Patterns (2nd ed.). O'Reilly Media. https://www.patterns.dev
11. Abramov, D. (2015). Presentational and Container Components. Medium / personal blog. https://medium.com/@dan_abramov/smart-and-dumb-components-7ca2f9a7c7d0
12. Testing Library Documentation. (2024). Guiding Principles - React Testing Library. https://testing-library.com/docs/guiding-principles
13. Martin, R. C. (2017). Clean Architecture: A Craftsman's Guide to Software Structure and Design. Prentice Hall.
